What is the standard thickness of PCB?
What is the standard thickness of PCB?

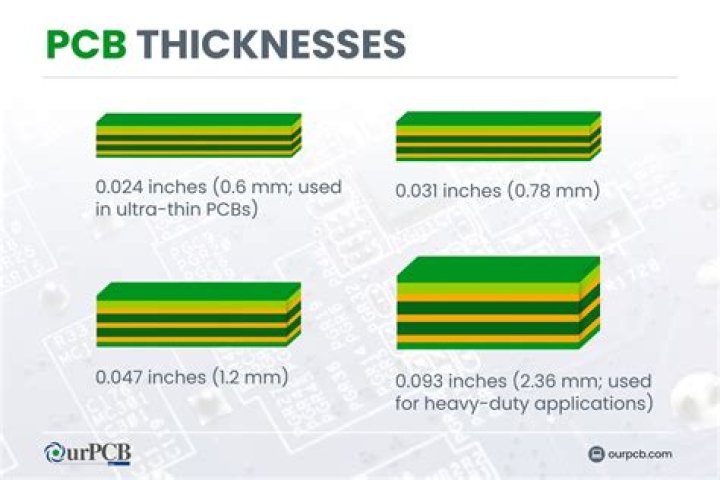

What is Standard PCB Thickness? Many contract manufacturers may say that the standard PCB thickness is 1.57 mm, or approximately 0.062 in.
How thick is the copper on a FR4?
1/16″
MG Chemicals – 503 Copper Clad Board, Single Sided, 5″ x 3″, 1 oz Copper, 1/16″ Thick, FR4.
What are standard PCB panel sizes?
The most common standard panel sizes are 18” × 24”, 18” × 12”, 9” × 24”, and 9” × 12”. A ½” clearance around the panel border is required for handling panels, although some manufacturers will extend this required clearance out to 1” for multilayer boards.
What is FR4 PCB?
FR-4 is a common material for printed circuit boards (PCBs). A thin layer of copper foil is typically laminated to one or both sides of an FR-4 glass epoxy panel. These are commonly referred to as copper clad laminates. The copper thickness or copper weight can vary and so is specified separately.
What is fr4 PCB?
How thick is the copper on PCB?
2 oz copper (70µm thick or 2.8 mils) — Standard internal layer copper thickness for internal layers on 3 oz finished copper selection. This is the standard starting copper thickness on the external layers for PCBs with the 3 oz finished copper weight selection.
How thick is 3 oz copper on a PCB?
Copper Weight Minimum Spacing Rules
| Cu Weight | Min. Recommended Space between Copper Features and Min. Trace width |
|---|---|
| 1oz | 3.5 mil (0.089mm) |
| 2oz | 8 mil (0.203mm) |
| 3oz | 10 mil (0.254mm) |
| 4oz | 14 mil (0.355mm) |
How do I know what size PCB to get?
The board size should be larger than the available area. We maintain the tolerance value of ±3mil during the manufacturing. This value is taken into consideration while deciding the board size. Type of enclosure is another factor that we emphasize on while deciding the board size.
What is V cut PCB?
PCB V-Scoring. V-Scoring also named as V-grooving or V-cutting, it is a way to split circuit boards. It is cutting a “v” groove on the top and bottom of a circuit board while leaving a minimum amount of material in place to hold the boards together.
What is the standard PCB thickness?
Standard PCB Thickness. Most PCB manufacturers recommend 1.57mm (0.062 inches) as the standard PCB thickness size.
What is the thickness of a printed circuit board?
The minimum thickness for most of the circuit boards is 0.2 mm. However, owing to the need of the design or limited space, the minimum thickness can vary. In such cases, the minimum thickness is generally 0.2 mm, 0.4 mm, 0.5 mm, etc.
What is a blank circuit board?
A blank circuit board is a board without any contacts or pieces that is used for the creation of printed circuit boards (PCBs). Most blank circuit board units are known as copper -clad, meaning the board is coated in copper, which helps when the PCB has electricity going through it.
What is the thickness of a board?
A paper board is defined by its thickness. Any paper that is 0.012 inch or more, which is a little less than 1/64 inch in thickness, can accurately be called a board. Tissue paper is approximately 0.001 inch thick, bond paper ranges from 0.003 to 0.004 inch, and one-ply museum board ranges from 0.0125 to 0.015 inch.
