What are the parts of superheterodyne receiver?

One of the prototype superheterodyne receivers built at Armstrong’s Signal Corps laboratory in Paris during World War I. It is constructed in two sections, the mixer and local oscillator (left) and three IF amplification stages and a detector stage (right). The intermediate frequency was 75 kHz.

What is the basic definition of superheterodyne receiver?

Glossary Term: Superheterodyne Receiver Definition. A radio receiver that combines a locally generated frequency with the carrier frequency to produce a lower-frequency signal (IF, or intermediate frequency) that is easier to demodulate than the original modulated carrier.

What is meant by superheterodyne receiver and explain its operation with neat block diagram?

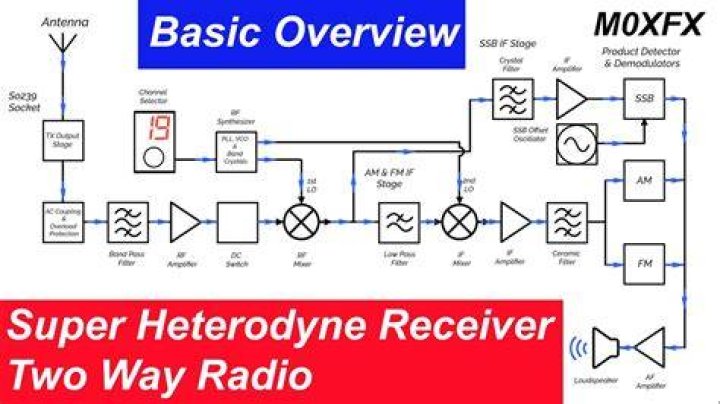

Superheterodyne receiver block diagram explanation Signals enter the receiver from the antenna and are applied to the RF amplifier where they are tuned to remove the image signal and also reduce the general level of unwanted signals on other frequencies that are not required.

Which is correct in superheterodyne receivers?

The correct sequence of components is, therefore: RF Amplifier, followed by Mixer, followed by Demodulator, followed by AF Amplifier. A superheterodyne receiver changes the RF frequency to a lower IF frequency. This IF frequency will be amplified and demodulated to get a video signal.

How does an AM detector work?

AM Detector. The detection of AM radio signals is a diode application. The modulated AM carrier wave is received by the antenna of the radio receiver and is rectified by the action of a detector diode. The signal frequency which modulates it is much lower, 0.02 to 5 kHz, and it can pass through the filter.

What is heterodyne and superheterodyne?

A superheterodyne receiver contains a combination of amplification with frequency mixing, and is by far the most popular architecture for a microwave receiver. To heterodyne means to mix two signals of different frequencies together, resulting in a “beat” frequency.

Why have we selected if as 455khz?

Uses. Perhaps the most commonly used intermediate frequencies for broadcast receivers are around 455 kHz for AM receivers and 10.7 MHz for FM receivers. A first intermediate frequency may even be higher than the input signal, so that all undesired responses can be easily filtered out by a fixed-tuned RF stage.

What is meant by double spotting in am superheterodyne receiver?

“Double-spotting” is a term that means that the wanted station is tuned in at two spots on the dial. These spots would be just 60kHz apart if an IF of 30kHz is used.
